game of active directory(GOAD) part 1 Reconnaissance and Scanning

#渗透测试#靶场#域#漏洞复现1169
AI Translation
This post is translated from Chinese into English through AI.View Original
AI-generated summary
The text discusses setting up a GOAD target environment for cybersecurity experiments, using tools like crackmapexec for SMB scanning and network enumeration. It also covers setting up DNS queries, configuring /etc/hosts and Kerberos for Linux, and installing the krb5-user package. The goal is to gather information about the target machines and domains for further analysis and exploitation.


Reconnaissance and Scanning#

Preface#

Recently, I had some time to open my home computer, so I started conducting experiments on the GOAD target environment. The write-up for the GOAD target will first follow the author's process, and later I can add my own understanding and supplements after learning.

For environment setup, refer to the previous blog: https://lca.xlog.app/game-of-active-directoryGOAD-yu-huan-jing-da-jian

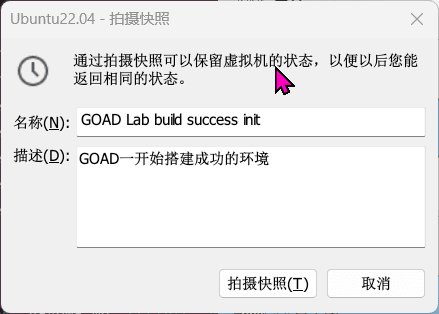

Before conducting experiments, take a snapshot of the VM.


Start all machines.

vargant up

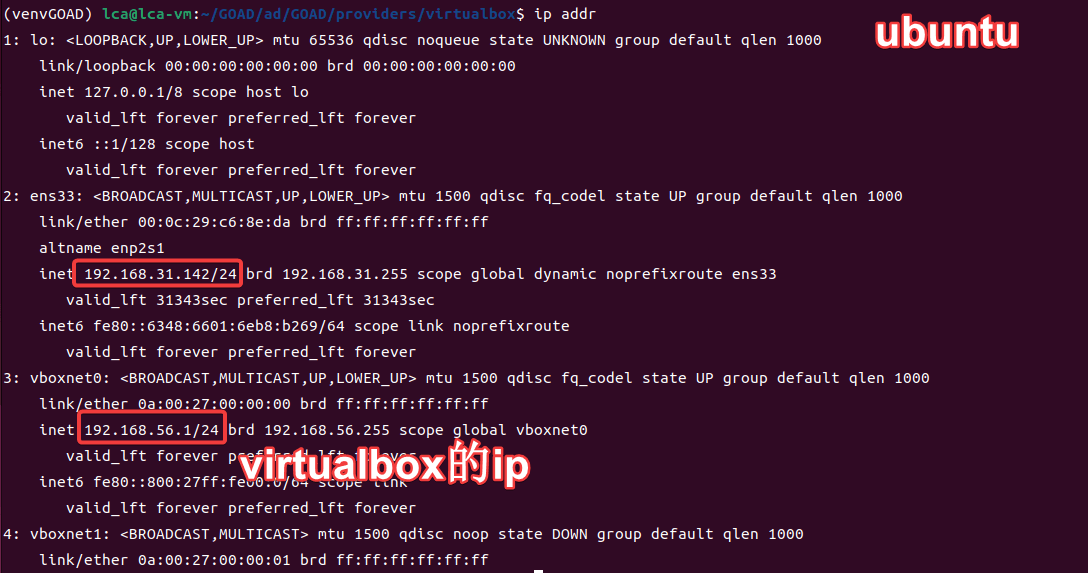

Network settings for the environment.


Ubuntu: The IP range for the VirtualBox VM is: 192.168.31.0/24
VirtualBox: The IP range for the GOAD target is 192.168.56.1/0


Thus, the overall access path for the environment is:

Windows (host machine - IP: 192.168.31.151) -> Ubuntu (VM IP: 192.168.31.142) -> GOAD target (VirtualBox VM IP: 192.168.56.1/24)

I initially wanted to use Kali as the attack machine, but as mentioned in previous article comments, it would be inaccessible and would require a proxy for testing. However, running Kali consumes memory, and my host machine only has 32GB of RAM. If I start another Kali instance, the target machine will report an error due to insufficient memory.

The CPU of the host machine will also spike.


So I will directly conduct attacks using Ubuntu. If later the Ubuntu machine does not meet the attack requirements, we will discuss that then!

Network Enumeration#


cme

# Install cme
sudo snap install crackmapexec

# cme smb scan
crackmapexec smb 192.168.56.0/24

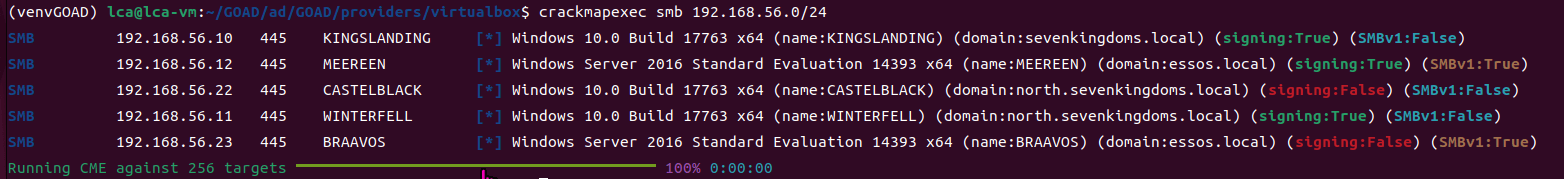

The results of the cme scan are shown in the image above, returning some useful information, including all target machine IPs, names, and domain information.

SMB         192.168.56.10   445    KINGSLANDING     [*] Windows 10.0 Build 17763 x64 (name:KINGSLANDING) (domain:sevenkingdoms.local) (signing:True) (SMBv1:False)
SMB         192.168.56.12   445    MEEREEN          [*] Windows Server 2016 Standard Evaluation 14393 x64 (name:MEEREEN) (domain:essos.local) (signing:True) (SMBv1:True)
SMB         192.168.56.22   445    CASTELBLACK      [*] Windows 10.0 Build 17763 x64 (name:CASTELBLACK) (domain:north.sevenkingdoms.local) (signing:False) (SMBv1:False)
SMB         192.168.56.11   445    WINTERFELL       [*] Windows 10.0 Build 17763 x64 (name:WINTERFELL) (domain:north.sevenkingdoms.local) (signing:True) (SMBv1:False)
SMB         192.168.56.23   445    BRAAVOS          [*] Windows Server 2016 Standard Evaluation 14393 x64 (name:BRAAVOS) (domain:essos.local) (signing:False) (SMBv1:True)
  • north.sevenkingdoms.local (2 IPs)
    • CASTELBLACK 192.168.56.22
    • WINTERFELL 192.168.56.11
  • sevenkingdoms.local (1 IP)
    • KINGSLANDING 192.168.56.10
  • essos.local (2 IPs)
    • MEEREEN 192.168.56.12
    • BRAAVOS 192.168.56.23

From the topology, it is clear that the GOAD target has three domains. The cme scan results also indicate that the DC signatures are all True (signing). In a real environment, to prevent NTLM relay attacks, all signatures must be set to True.

Finding the DC's IP#


You can use nslookup to perform DNS queries to list relevant information about the DC.

nslookup -type=srv _ldap._tcp.dc._msdcs.sevenkingdoms.local 192.168.56.10
  • nslookup: DNS query tool
    • -type=srv: Specifies to query SRV records, which are a type of DNS record used to identify specific services.
    • _ldap._tcp.dc._msdcs.sevenkingdoms.local: The hostname to query for information about domain controllers providing LDAP services in the "sevenkingdoms.local" domain.
    • The IP address of the queried DNS server.

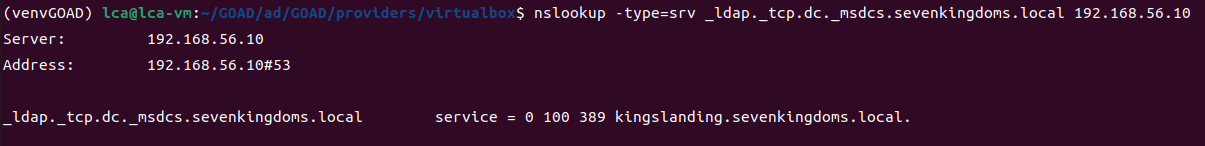

Querying sevenkingdoms.local

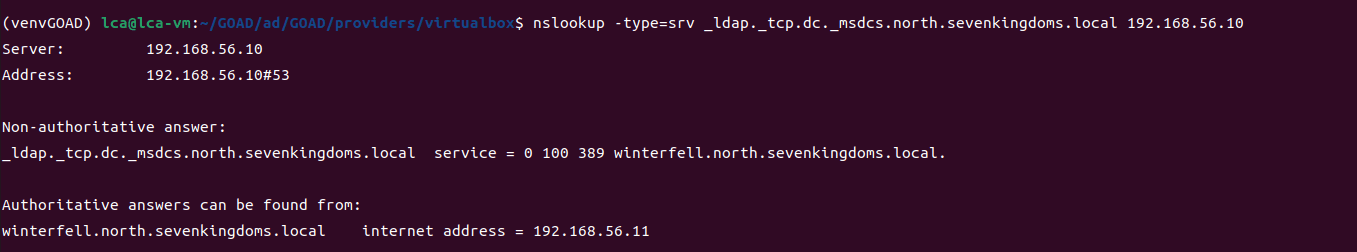

Querying north.sevenkingdoms.local

nslookup -type=srv _ldap._tcp.dc._msdcs.north.sevenkingdoms.local 192.168.56.10

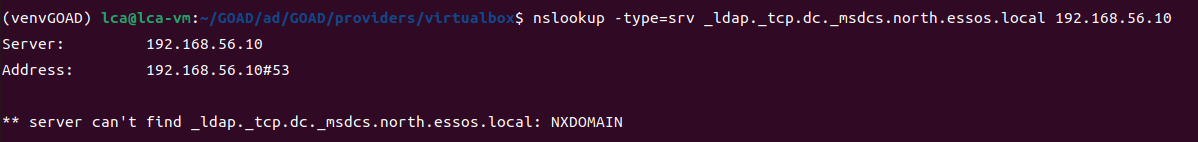

Querying essos.local

nslookup -type=srv _ldap._tcp.dc._msdcs.north.essos.local 192.168.56.10


Setting /etc/hosts and Kerberos#

To use Kerberos in a Linux environment, some settings need to be made.

  1. Configure the /etc/hosts file to set DNS.
# /etc/hosts
# GOAD
192.168.56.10   sevenkingdoms.local kingslanding.sevenkingdoms.local kingslanding
192.168.56.11   winterfell.north.sevenkingdoms.local north.sevenkingdoms.local winterfell
192.168.56.12   essos.local meereen.essos.local meereen
192.168.56.22   castelblack.north.sevenkingdoms.local castelblack
192.168.56.23   braavos.essos.local braavos


Install the Kerberos Linux client.

sudo apt install krb5-user

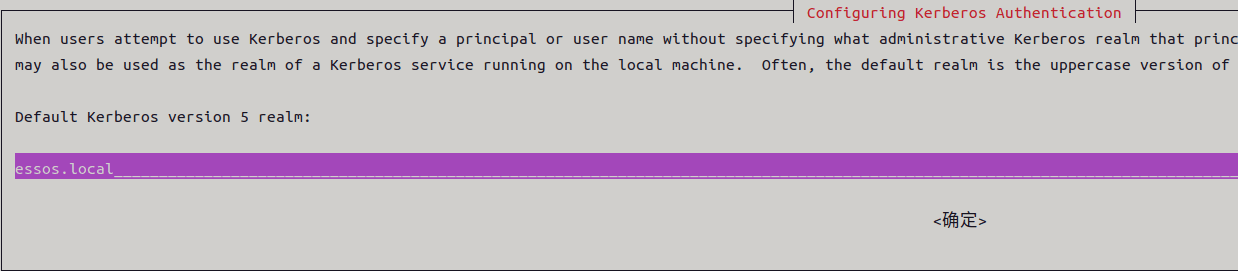

Set admin_server to meereen.essos.local.

If krb5-user is already installed or needs to be reconfigured, you can use dpkg-reconfigure or modify the /etc/krb5.conf file for reconfiguration. The content is as follows:

sudo gedit /etc/krb5.conf

[libdefaults]
	default_realm = essos.local
	kdc_timesync = 1
	ccache_type = 4
	forwardable = true
	proxiable = true
	fcc-mit-ticketflags = true

[realms]
	north.sevenkingdoms.local = {
		kdc = winterfell.north.sevenkingdoms.local
		admin_server = winterfell.north.sevenkingdoms.local
	}

	sevenkingdoms.local = {
		kdc = kingslanding.sevenkingdoms.local
		admin_server = kingslanding.sevenkingdoms.local
	}

	essos.local = {
		kdc = meereen.essos.local
		admin_server = meereen.essos.local
	}

After completing the Kerberos setup, you can try to see if you can obtain a TGT ticket.

Download:

fortra/impacket

Impacket is a collection of Python classes for working with network protocols.

Python135603586
sudo pip3 install .
sudo python3 setup.py install

getTGT.py essos.local/khal.drogo:horse


export KRB5CCNAME=/home/lca/tools/impacket/examples/khal.drogo.ccache

python3 smbclient.py -k @braavos.essos.local
Impacket v0.12.0.dev1+20240502.235035.cb8467c3 - Copyright 2023 Fortra

Type help for list of commands
# shares
ADMIN$
all
C$
CertEnroll
IPC$
public
# use C$
# ls
drw-rw-rw-          0  Thu Feb 14 19:42:10 2019 $Recycle.Bin
-rw-rw-rw-     384322  Fri Feb 15 03:38:48 2019 bootmgr
-rw-rw-rw-          1  Fri Feb 15 03:38:48 2019 BOOTNXT
-rw-rw-rw-       1014  Thu Jan 18 00:00:49 2024 dns_log.txt
drw-rw-rw-          0  Wed Jan 17 07:27:46 2024 Documents and Settings
drw-rw-rw-          0  Wed Jan 17 22:04:13 2024 inetpub
-rw-rw-rw- 1476395008  Sun May  5 23:00:57 2024 pagefile.sys
drw-rw-rw-          0  Thu Feb 14 20:19:12 2019 PerfLogs
drw-rw-rw-          0  Wed Jan 17 23:07:58 2024 Program Files
drw-rw-rw-          0  Thu Jan 18 00:28:34 2024 Program Files (x86)
drw-rw-rw-          0  Thu Jan 18 00:17:10 2024 ProgramData
drw-rw-rw-          0  Tue Jan 16 23:28:06 2024 Recovery
drw-rw-rw-          0  Wed Jan 17 22:31:30 2024 setup
drw-rw-rw-          0  Thu Jan 18 00:32:16 2024 shares
drw-rw-rw-          0  Sun May  5 15:01:26 2024 System Volume Information
drw-rw-rw-          0  Wed Jan 17 21:53:12 2024 tmp
drw-rw-rw-          0  Wed Jan 17 23:57:19 2024 Users
drw-rw-rw-          0  Wed Jan 17 22:05:24 2024 Windows

As shown above, Kerberos is set up.

Unset the ticket.

unset KRB5CCNAME

Test other domains.


export KRB5CCNAME=/home/lca/tools/impacket/examples/arya.stark.ccache

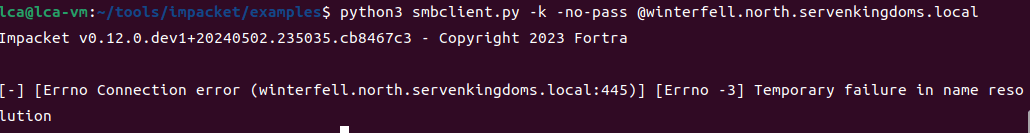

python3 smbclient.py -k -no-pass @winterfell.north.servenkingdoms.local
Impacket v0.12.0.dev1+20240502.235035.cb8467c3 - Copyright 2023 Fortra

[-] [Errno Connection error (winterfell.north.servenkingdoms.local:445)] [Errno -3] Temporary failure in name resolution


I don't know why Kerberos does not work when using the full FQDN for Winterfell, but it works fine when just setting Winterfell instead of winterfell.north.sevenkingdoms.local.


Nmap Scan#

Install nmap.

sudo apt install nmap

Use nmap to perform a scan with the following parameters.

nmap -Pn -p- -sC -sV -oA full_scan_goad 192.168.56.10-12,22-23

Parameters are as follows:

  • -Pn: Do not perform ping scan.
  • -p-: Full port scan, 1-65535.
  • -sC: Run default detection scripts.
  • -sV: Perform service version detection on specified ports.
  • -oA: Output results in three formats.

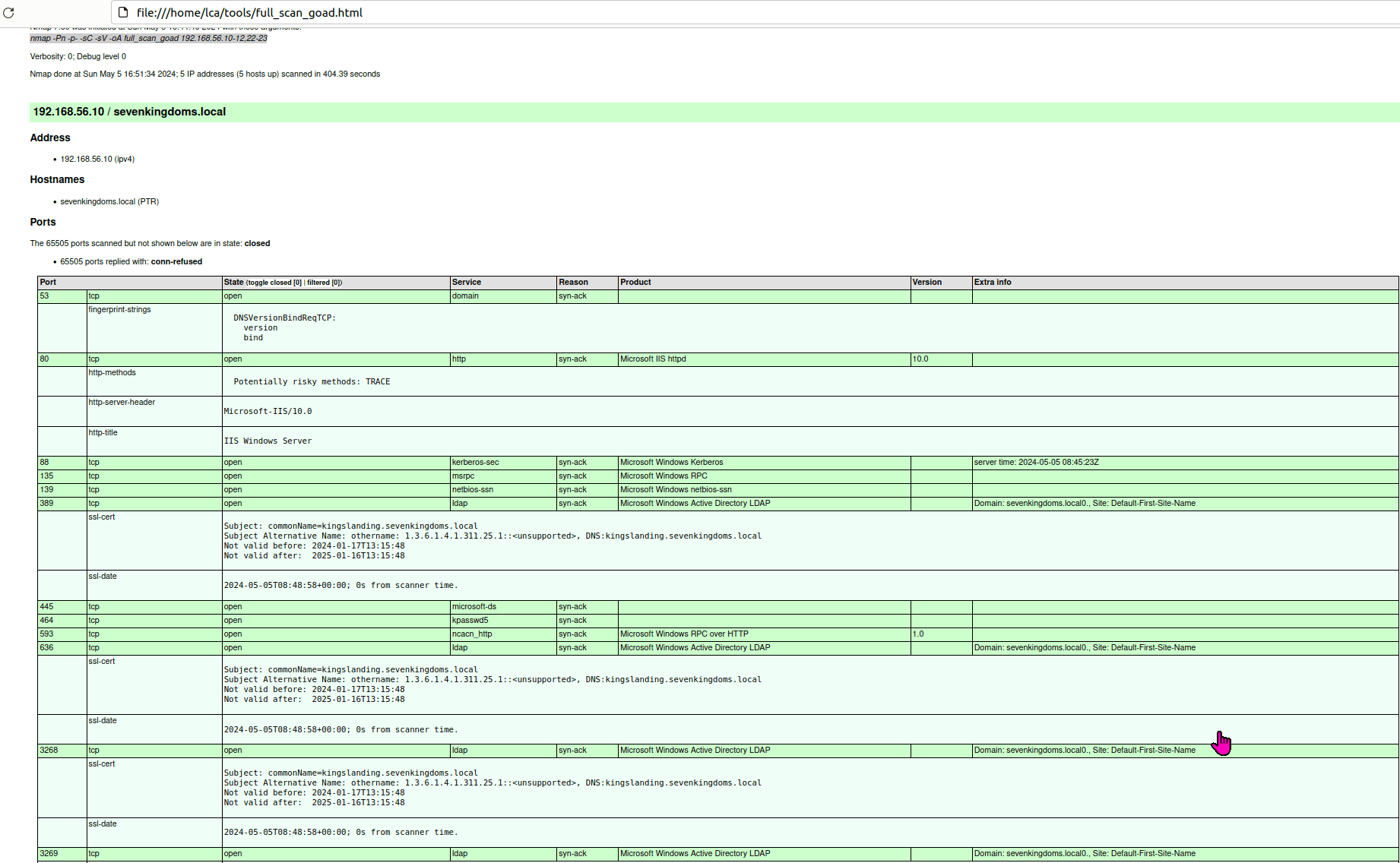

The nmap scan results are as follows:

# Nmap 7.80 scan initiated Sun May  5 16:44:49 2024 as: nmap -Pn -p- -sC -sV -oA full_scan_goad 192.168.56.10-12,22-23
Nmap scan report for sevenkingdoms.local (192.168.56.10)
Host is up (0.0011s latency).
Not shown: 65505 closed ports
PORT      STATE SERVICE       VERSION
53/tcp    open  domain?
| fingerprint-strings:
|   DNSVersionBindReqTCP:
|     version
|_    bind
80/tcp    open  http          Microsoft IIS httpd 10.0
| http-methods:
|_  Potentially risky methods: TRACE
|_http-server-header: Microsoft-IIS/10.0
|_http-title: IIS Windows Server
88/tcp    open  kerberos-sec  Microsoft Windows Kerberos (server time: 2024-05-05 08:45:23Z)
135/tcp   open  msrpc         Microsoft Windows RPC
139/tcp   open  netbios-ssn   Microsoft Windows netbios-ssn
389/tcp   open  ldap          Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:kingslanding.sevenkingdoms.local
| Not valid before: 2024-01-17T13:15:48
|_Not valid after:  2025-01-16T13:15:48
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
445/tcp   open  microsoft-ds?
464/tcp   open  kpasswd5?
593/tcp   open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
636/tcp   open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:kingslanding.sevenkingdoms.local
| Not valid before: 2024-01-17T13:15:48
|_Not valid after:  2025-01-16T13:15:48
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
3268/tcp  open  ldap          Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:kingslanding.sevenkingdoms.local
| Not valid before: 2024-01-17T13:15:48
|_Not valid after:  2025-01-16T13:15:48
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
3269/tcp  open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:kingslanding.sevenkingdoms.local
| Not valid before: 2024-01-17T13:15:48
|_Not valid after:  2025-01-16T13:15:48
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
3389/tcp  open  ms-wbt-server Microsoft Terminal Services
| ssl-cert: Subject: commonName=kingslanding.sevenkingdoms.local
| Not valid before: 2024-01-16T12:49:01
|_Not valid after:  2024-07-17T12:49:01
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
5985/tcp  open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
5986/tcp  open  ssl/http      Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
| ssl-cert: Subject: commonName=VAGRANT
| Subject Alternative Name: DNS:VAGRANT, DNS:vagrant
| Not valid before: 2024-01-15T06:56:16
|_Not valid after:  2027-01-14T06:56:16
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
| tls-alpn:
|_  http/1.1
9389/tcp  open  mc-nmf        .NET Message Framing
47001/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
49664/tcp open  msrpc         Microsoft Windows RPC
49665/tcp open  msrpc         Microsoft Windows RPC
49666/tcp open  msrpc         Microsoft Windows RPC
49667/tcp open  msrpc         Microsoft Windows RPC
49668/tcp open  msrpc         Microsoft Windows RPC
49670/tcp open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
49671/tcp open  msrpc         Microsoft Windows RPC
49672/tcp open  msrpc         Microsoft Windows RPC
49674/tcp open  msrpc         Microsoft Windows RPC
49677/tcp open  msrpc         Microsoft Windows RPC
49684/tcp open  msrpc         Microsoft Windows RPC
49696/tcp open  msrpc         Microsoft Windows RPC
49711/tcp open  msrpc         Microsoft Windows RPC
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service :
SF-Port53-TCP:V=7.80%I=7%D=5/5%Time=66374728%P=x86_64-pc-linux-gnu%r(DNSVe
SF:rsionBindReqTCP,20,"\0\x1e\0\x06\x81\x04\0\x01\0\0\0\0\0\0\x07version\x
SF:04bind\0\0\x10\0\x03");
Service Info: Host: KINGSLANDING; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
|_nbstat: NetBIOS name: KINGSLANDING, NetBIOS user: <unknown>, NetBIOS MAC: 08:00:27:62:c4:af (Oracle VirtualBox virtual NIC)
| smb2-security-mode:
|   2.02:
|_    Message signing enabled and required
| smb2-time:
|   date: 2024-05-05T08:48:40
|_  start_date: N/A

Nmap scan report for winterfell.north.sevenkingdoms.local (192.168.56.11)
Host is up (0.00079s latency).
Not shown: 65506 closed ports
PORT      STATE SERVICE       VERSION
53/tcp    open  domain?
| fingerprint-strings:
|   DNSVersionBindReqTCP:
|     version
|_    bind
88/tcp    open  kerberos-sec  Microsoft Windows Kerberos (server time: 2024-05-05 08:45:28Z)
135/tcp   open  msrpc         Microsoft Windows RPC
139/tcp   open  netbios-ssn   Microsoft Windows netbios-ssn
389/tcp   open  ldap          Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:winterfell.north.sevenkingdoms.local
| Not valid before: 2024-01-17T15:35:51
|_Not valid after:  2025-01-16T15:35:51
|_ssl-date: 2024-05-05T08:48:57+00:00; -1s from scanner time.
445/tcp   open  microsoft-ds?
464/tcp   open  kpasswd5?
593/tcp   open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
636/tcp   open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:winterfell.north.sevenkingdoms.local
| Not valid before: 2024-01-17T15:35:51
|_Not valid after:  2025-01-16T15:35:51
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
3268/tcp  open  ldap          Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:winterfell.north.sevenkingdoms.local
| Not valid before: 2024-01-17T15:35:51
|_Not valid after:  2025-01-16T15:35:51
|_ssl-date: 2024-05-05T08:48:57+00:00; -1s from scanner time.
3269/tcp  open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: sevenkingdoms.local0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:winterfell.north.sevenkingdoms.local
| Not valid before: 2024-01-17T15:35:51
|_Not valid after:  2025-01-16T15:35:51
|_ssl-date: 2024-05-05T08:48:57+00:00; -1s from scanner time.
3389/tcp  open  ms-wbt-server Microsoft Terminal Services
| ssl-cert: Subject: commonName=winterfell.north.sevenkingdoms.local
| Not valid before: 2024-01-16T12:59:52
|_Not valid after:  2024-07-17T12:59:52
|_ssl-date: 2024-05-05T08:48:57+00:00; -1s from scanner time.
5985/tcp  open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
5986/tcp  open  ssl/http      Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
| ssl-cert: Subject: commonName=VAGRANT
| Subject Alternative Name: DNS:VAGRANT, DNS:vagrant
| Not valid before: 2024-01-15T07:00:27
|_Not valid after:  2027-01-14T07:00:27
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
| tls-alpn:
|_  http/1.1
9389/tcp  open  mc-nmf        .NET Message Framing
47001/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
49664/tcp open  msrpc         Microsoft Windows RPC
49665/tcp open  msrpc         Microsoft Windows RPC
49666/tcp open  msrpc         Microsoft Windows RPC
49667/tcp open  msrpc         Microsoft Windows RPC
49671/tcp open  msrpc         Microsoft Windows RPC
49673/tcp open  msrpc         Microsoft Windows RPC
49676/tcp open  msrpc         Microsoft Windows RPC
49677/tcp open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
49687/tcp open  msrpc         Microsoft Windows RPC
49694/tcp open  msrpc         Microsoft Windows RPC
49701/tcp open  msrpc         Microsoft Windows RPC
49739/tcp open  msrpc         Microsoft Windows RPC
54275/tcp open  msrpc         Microsoft Windows RPC
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service :
SF-Port53-TCP:V=7.80%I=7%D=5/5%Time=6637472E%P=x86_64-pc-linux-gnu%r(DNSVe
SF:rsionBindReqTCP,20,"\0\x1e\0\x06\x81\x04\0\x01\0\0\0\0\0\0\x07version\x
SF:04bind\0\0\x10\0\x03");
Service Info: Host: WINTERFELL; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
|_nbstat: NetBIOS name: WINTERFELL, NetBIOS user: <unknown>, NetBIOS MAC: 08:00:27:73:1f:da (Oracle VirtualBox virtual NIC)
| smb2-security-mode:
|   2.02:
|_    Message signing enabled and required
| smb2-time:
|   date: 2024-05-05T08:48:43
|_  start_date: N/A

Nmap scan report for essos.local (192.168.56.12)
Host is up (0.00043s latency).
Not shown: 65508 closed ports
PORT      STATE SERVICE       VERSION
53/tcp    open  domain?
| fingerprint-strings:
|   DNSVersionBindReqTCP:
|     version
|_    bind
88/tcp    open  kerberos-sec  Microsoft Windows Kerberos (server time: 2024-05-05 08:46:22Z)
135/tcp   open  msrpc         Microsoft Windows RPC
139/tcp   open  netbios-ssn   Microsoft Windows netbios-ssn
389/tcp   open  ldap          Microsoft Windows Active Directory LDAP (Domain: essos.local, Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=meereen.essos.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:meereen.essos.local
| Not valid before: 2024-01-17T13:55:53
|_Not valid after:  2025-01-16T13:55:53
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
445/tcp   open  microsoft-ds  Microsoft Windows Server 2008 R2 - 2012 microsoft-ds (workgroup: ESSOS)
464/tcp   open  kpasswd5?
593/tcp   open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
636/tcp   open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: essos.local, Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=meereen.essos.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:meereen.essos.local
| Not valid before: 2024-01-17T13:55:53
|_Not valid after:  2025-01-16T13:55:53
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
3268/tcp  open  ldap          Microsoft Windows Active Directory LDAP (Domain: essos.local, Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=meereen.essos.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:meereen.essos.local
| Not valid before: 2024-01-17T13:55:53
|_Not valid after:  2025-01-16T13:55:53
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
3269/tcp  open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: essos.local, Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=meereen.essos.local
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:meereen.essos.local
| Not valid before: 2024-01-17T13:55:53
|_Not valid after:  2025-01-16T13:55:53
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
3389/tcp  open  ms-wbt-server Microsoft Terminal Services
| ssl-cert: Subject: commonName=meereen.essos.local
| Not valid before: 2024-01-16T12:49:13
|_Not valid after:  2024-07-17T12:49:13
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
5985/tcp  open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
5986/tcp  open  ssl/http      Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
| ssl-cert: Subject: commonName=VAGRANT
| Subject Alternative Name: DNS:VAGRANT, DNS:vagrant
| Not valid before: 2024-01-15T07:08:56
|_Not valid after:  2027-01-14T07:08:56
|_ssl-date: 2024-05-05T08:48:58+00:00; 0s from scanner time.
| tls-alpn:
|   h2
|_  http/1.1
9389/tcp  open  mc-nmf        .NET Message Framing
47001/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
49664/tcp open  msrpc         Microsoft Windows RPC
49665/tcp open  msrpc         Microsoft Windows RPC
49666/tcp open  msrpc         Microsoft Windows RPC
49668/tcp open  msrpc         Microsoft Windows RPC
49669/tcp open  msrpc         Microsoft Windows RPC
49676/tcp open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
49677/tcp open  msrpc         Microsoft Windows RPC
49681/tcp open  msrpc         Microsoft Windows RPC
49684/tcp open  msrpc         Microsoft Windows RPC
49690/tcp open  msrpc         Microsoft Windows RPC
49711/tcp open  msrpc         Microsoft Windows RPC
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service :
SF-Port53-TCP:V=7.80%I=7%D=5/5%Time=66374763%P=x86_64-pc-linux-gnu%r(DNSVe
SF:rsionBindReqTCP,20,"\0\x1e\0\x06\x81\x04\0\x01\0\0\0\0\0\0\x07version\x
SF:04bind\0\0\x10\0\x03");
Service Info: Host: MEEREEN; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
|_ms-sql-info: ERROR: Script execution failed (use -d to debug)
|_nbstat: NetBIOS name: MEEREEN, NetBIOS user: <unknown>, NetBIOS MAC: 08:00:27:c5:7e:aa (Oracle VirtualBox virtual NIC)
|_smb-os-discovery: ERROR: Script execution failed (use -d to debug)
| smb-security-mode:
|   account_used: guest
|   authentication_level: user
|   challenge_response: supported
|_  message_signing: required
| smb2-security-mode:
|   2.02:
|_    Message signing enabled and required
| smb2-time:
|   date: 2024-05-05T08:48:42
|_  start_date: 2024-05-05T04:02:06

Nmap scan report for castelblack.north.sevenkingdoms.local (192.168.56.22)
Host is up (0.0022s latency).
Not shown: 65516 closed ports
PORT      STATE SERVICE       VERSION
80/tcp    open  http          Microsoft IIS httpd 10.0
| http-methods:
|_  Potentially risky methods: TRACE
|_http-server-header: Microsoft-IIS/10.0
|_http-title: Site doesn't have a title (text/html).
135/tcp   open  msrpc         Microsoft Windows RPC
139/tcp   open  netbios-ssn   Microsoft Windows netbios-ssn
445/tcp   open  microsoft-ds?
1433/tcp  open  ms-sql-s      Microsoft SQL Server  15.00.2000.00
| ms-sql-ntlm-info:
|   Target_Name: NORTH
|   NetBIOS_Domain_Name: NORTH
|   NetBIOS_Computer_Name: CASTELBLACK
|   DNS_Domain_Name: north.sevenkingdoms.local
|   DNS_Computer_Name: castelblack.north.sevenkingdoms.local
|   DNS_Tree_Name: sevenkingdoms.local
|_  Product_Version: 10.0.17763
| ssl-cert: Subject: commonName=SSL_Self_Signed_Fallback
| Not valid before: 2024-05-05T07:22:58
|_Not valid after:  2054-05-05T07:22:58
|_ssl-date: 2024-05-05T08:48:57+00:00; -1s from scanner time.
3389/tcp  open  ms-wbt-server Microsoft Terminal Services
| rdp-ntlm-info:
|   Target_Name: NORTH
|   NetBIOS_Domain_Name: NORTH
|   NetBIOS_Computer_Name: CASTELBLACK
|   DNS_Domain_Name: north.sevenkingdoms.local
|   DNS_Computer_Name: castelblack.north.sevenkingdoms.local
|   DNS_Tree_Name: sevenkingdoms.local
|   Product_Version: 10.0.17763
|_  System_Time: 2024-05-05T08:48:42+00:00
| ssl-cert: Subject: commonName=castelblack.north.sevenkingdoms.local
| Not valid before: 2024-01-16T13:08:04
|_Not valid after:  2024-07-17T13:08:04
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
5985/tcp  open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
5986/tcp  open  ssl/http      Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
| ssl-cert: Subject: commonName=VAGRANT
| Subject Alternative Name: DNS:VAGRANT, DNS:vagrant
| Not valid before: 2024-01-15T07:18:49
|_Not valid after:  2027-01-14T07:18:49
|_ssl-date: 2024-05-05T08:48:57+00:00; 0s from scanner time.
| tls-alpn:
|_  http/1.1
47001/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
49664/tcp open  msrpc         Microsoft Windows RPC
49665/tcp open  msrpc         Microsoft Windows RPC
49666/tcp open  msrpc         Microsoft Windows RPC
49667/tcp open  msrpc         Microsoft Windows RPC
49669/tcp open  msrpc         Microsoft Windows RPC
49690/tcp open  ms-sql-s      Microsoft SQL Server
| ms-sql-ntlm-info:
|   Target_Name: NORTH
|   NetBIOS_Domain_Name: NORTH
|   NetBIOS_Computer_Name: CASTELBLACK
|   DNS_Domain_Name: north.sevenkingdoms.local
|   DNS_Computer_Name: castelblack.north.sevenkingdoms.local
|   DNS_Tree_Name: sevenkingdoms.local
|_  Product_Version: 10.0.17763
| ssl-cert: Subject: commonName=SSL_Self_Signed_Fallback
| Not valid before: 2024-05-05T07:22:58
|_Not valid after:  2054-05-05T07:22:58
|_ssl-date: 2024-05-05T08:48:57+00:00; -1s from scanner time.
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service :
SF-Port49865-TCP:V=7.80%I=7%D=5/5%Time=663747D6%P=x86_64-pc-linux-gnu%r(ms
SF:-sql-s,25,"\x04\x01\0%\0\0\x01\0\0\0\x15\0\x06\x01\0\x1b\0\x01\x02\0\x1
SF:c\0\x01\x03\0\x1d\0\0\xff\x0f\0\x07\xd0\0\0\0\0");
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
| ms-sql-info:
|   192.168.56.22:1433:
|     Version:
|       name: Microsoft SQL Server
|       number: 15.00.2000.00
|       Product: Microsoft SQL Server
|_    TCP port: 1433
|_nbstat: NetBIOS name: CASTELBLACK, NetBIOS user: <unknown>, NetBIOS MAC: 08:00:27:96:f0:ff (Oracle VirtualBox virtual NIC)
| smb2-security-mode:
|   2.02:
|_    Message signing enabled but not required
| smb2-time:
|   date: 2024-05-05T08:48:44
|_  start_date: N/A

Nmap scan report for braavos.essos.local (192.168.56.23)
Host is up (0.00073s latency).
Not shown: 65516 closed ports
PORT      STATE SERVICE       VERSION
80/tcp    open  http          Microsoft IIS httpd 10.0
| http-methods:
|_  Potentially risky methods: TRACE
|_http-server-header: Microsoft-IIS/10.0
|_http-title: IIS Windows Server
135/tcp   open  msrpc         Microsoft Windows RPC
139/tcp   open  netbios-ssn   Microsoft Windows netbios-ssn
445/tcp   open  microsoft-ds  Microsoft Windows Server 2008 R2 - 2012 microsoft-ds
1433/tcp  open  ms-sql-s      Microsoft SQL Server  15.00.2000.00
| ms-sql-ntlm-info:
|   Target_Name: ESSOS
|   NetBIOS_Domain_Name: ESSOS
|   NetBIOS_Computer_Name: BRAAVOS
|   DNS_Domain_Name: essos.local
|   DNS_Computer_Name: braavos.essos.local
|   DNS_Tree_Name: essos.local
|_  Product_Version: 10.0.14393
| ssl-cert: Subject: commonName=SSL_Self_Signed_Fallback
| Not valid before: 2024-05-05T07:01:25
|_Not valid after:  2054-05-05T07:01:25
|_ssl-date: 2024-05-05T08:51:34+00:00; 0s from scanner time.
3389/tcp  open  ms-wbt-server Microsoft Terminal Services
| ssl-cert: Subject: commonName=braavos.essos.local
| Not valid before: 2024-01-16T13:46:38
|_Not valid after:  2024-07-17T13:46:38
|_ssl-date: 2024-05-05T08:51:34+00:00; 0s from scanner time.
5985/tcp  open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
5986/tcp  open  ssl/http      Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
| ssl-cert: Subject: commonName=VAGRANT
| Subject Alternative Name: DNS:VAGRANT, DNS:vagrant
| Not valid before: 2024-01-15T07:01:25
|_Not valid after:  2027-01-14T07:01:25
|_ssl-date: 2024-05-05T08:51:34+00:00; 0s from scanner time.
| tls-alpn:
|   h2
|_  http/1.1
47001/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
49664/tcp open  msrpc         Microsoft Windows RPC
49665/tcp open  msrpc         Microsoft Windows RPC
49670/tcp open  msrpc         Microsoft Windows RPC
49671/tcp open  msrpc         Microsoft Windows RPC
49693/tcp open  msrpc         Microsoft Windows RPC
49712/tcp open  msrpc         Microsoft Windows RPC
49724/tcp open  msrpc         Microsoft Windows RPC
49769/tcp open  msrpc         Microsoft Windows RPC
49773/tcp open  msrpc         Microsoft Windows RPC
49896/tcp open  ms-sql-s      Microsoft SQL Server
| ms-sql-ntlm-info:
|   Target_Name: ESSOS
|   NetBIOS_Domain_Name: ESSOS
|   NetBIOS_Computer_Name: BRAAVOS
|   DNS_Domain_Name: essos.local
|   DNS_Computer_Name: braavos.essos.local
|   DNS_Tree_Name: essos.local
|_  Product_Version: 10.0.14393
| ssl-cert: Subject: commonName=SSL_Self_Signed_Fallback
| Not valid before: 2024-05-05T07:01:25
|_Not valid after:  2054-05-05T07:01:25
|_ssl-date: 2024-05-05T08:51:34+00:00; 0s from scanner time.
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service :
SF-Port49896-TCP:V=7.80%I=7%D=5/5%Time=66374886%P=x86_64-pc-linux-gnu%r(ms
SF:-sql-s,25,"\x04\x01\0%\0\0\x01\0\0\0\x15\0\x06\x01\0\x1b\0\x01\x02\0\x1
SF:c\0\x01\x03\0\x1d\0\0\xff\x0f\0\x07\xd0\0\0\0\0");
Service Info: OSs: Windows, Windows Server 2008 R2 - 2012; CPE: cpe:/o:microsoft:windows

Host script results:
|_ms-sql-info: ERROR: Script execution failed (use -d to debug)
|_nbstat: NetBIOS name: BRAAVOS, NetBIOS user: <unknown>, NetBIOS MAC: 08:00:27:36:af:ca (Oracle VirtualBox virtual NIC)
|_smb-os-discovery: ERROR: Script execution failed (use -d to debug)
| smb-security-mode:
|   account_used: guest
|   authentication_level: user
|   challenge_response: supported
|_  message_signing: disabled (dangerous, but default)
| smb2-security-mode:
|   2.02:
|_    Message signing enabled but not required
| smb2-time:
|   date: 2024-05-05T08:51:30
|_  start_date: 2024-05-05T07:01:07

Post-scan script results:
| clock-skew:
|   0s:
|     192.168.56.10 (sevenkingdoms.local)
|     192.168.56.12 (essos.local)
|_    192.168.56.23 (braavos.essos.local)
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
# Nmap done at Sun May  5 16:51:34 2024 -- 5 IP addresses (5 hosts up) scanned in 404.39 seconds

Beautify the nmap output in XML format.

sudo apt install xsltproc
xsltproc full_scan_goad.xml -o full_scan_goad.html
firefox full_scan_goad.html


References#

https://mayfly277.github.io/posts/GOADv2-pwning_part1/

Loading...
Ownership of this post data is guaranteed by blockchain and smart contracts to the creator alone.
